Catenary A-tarp

Overview

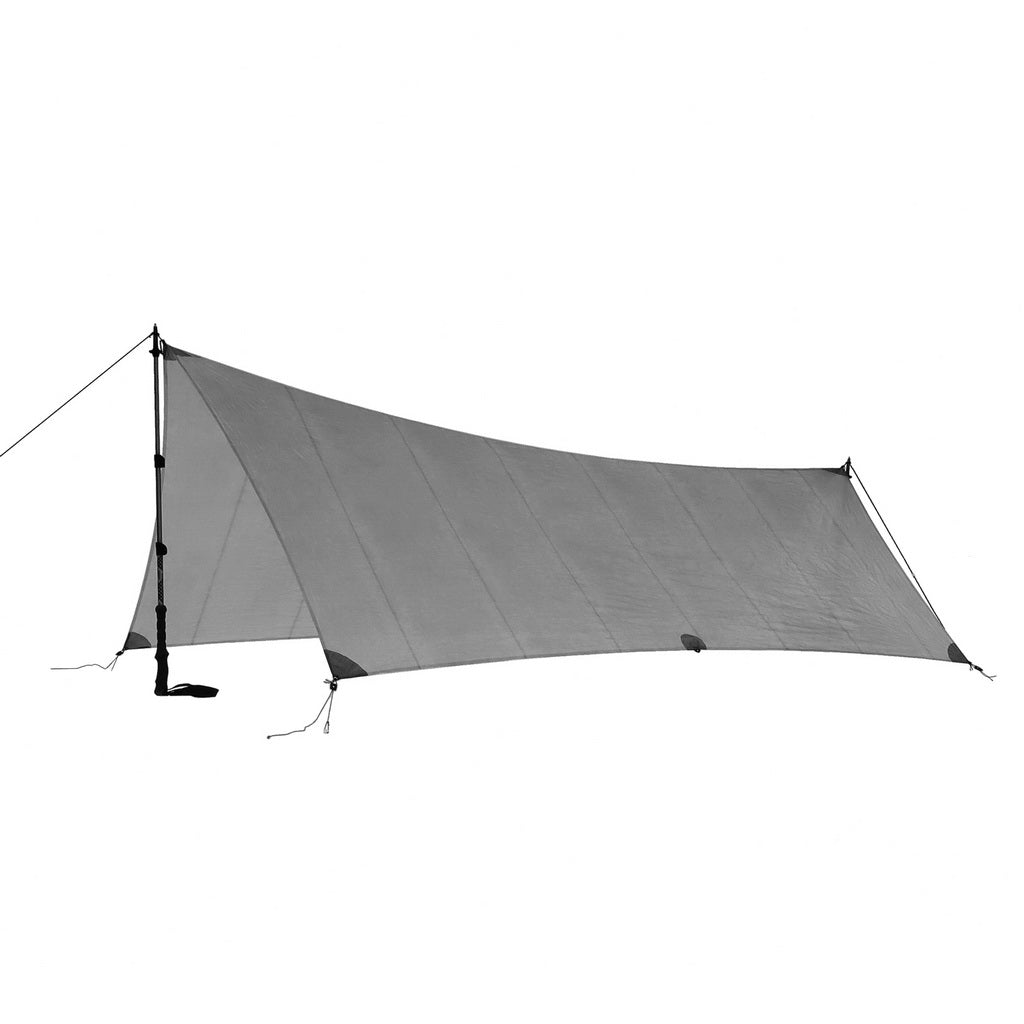

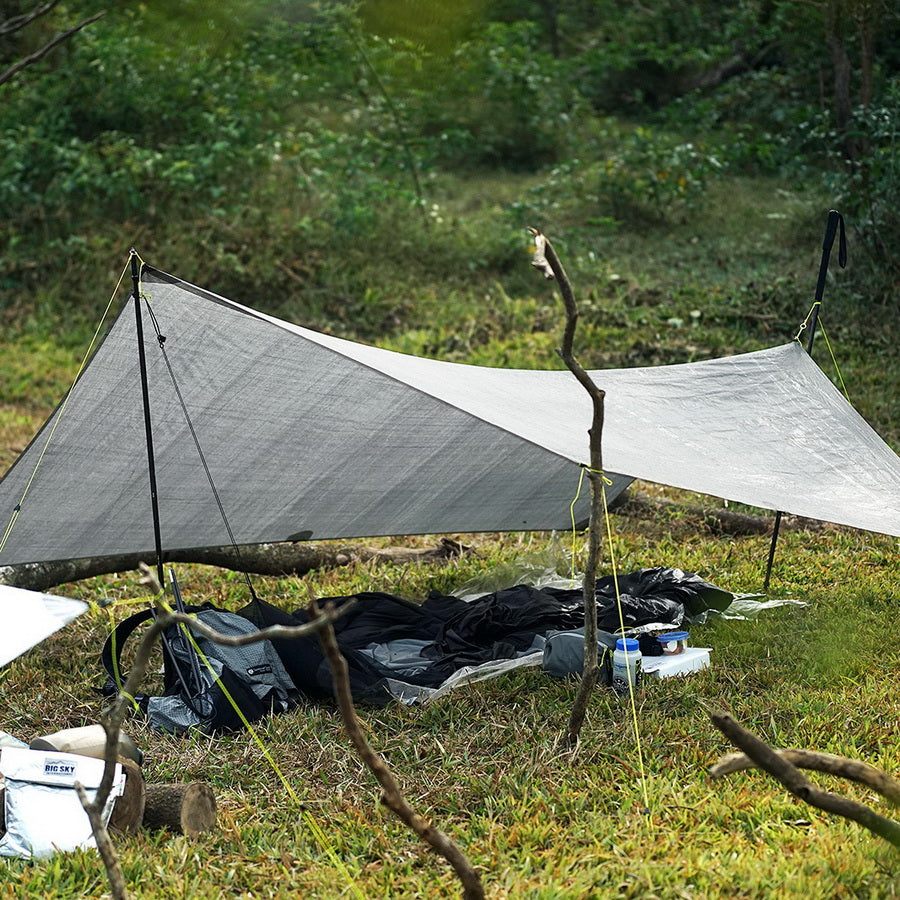

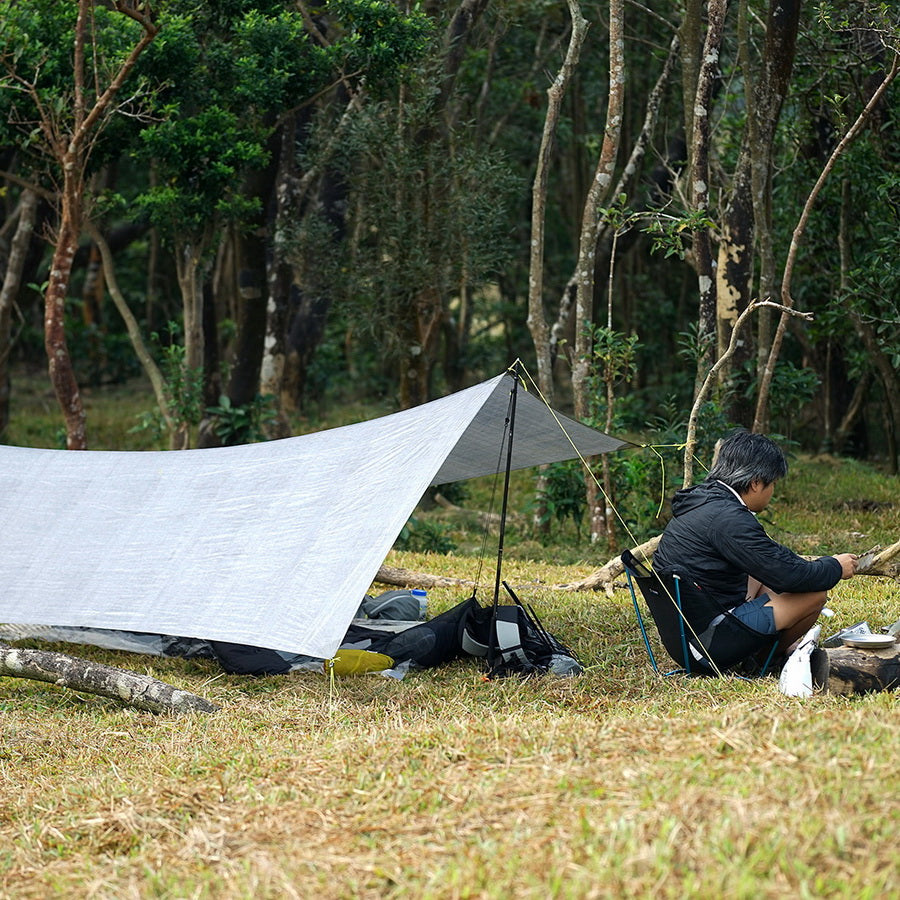

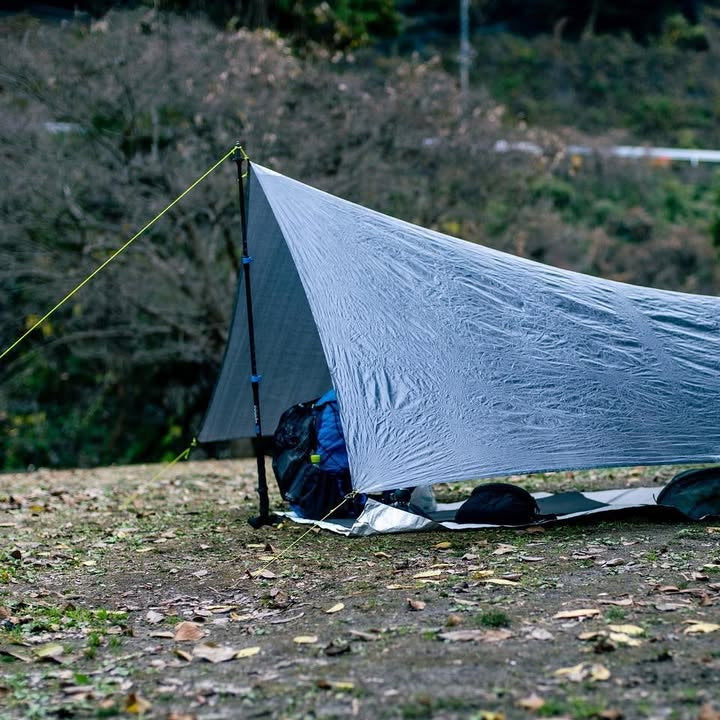

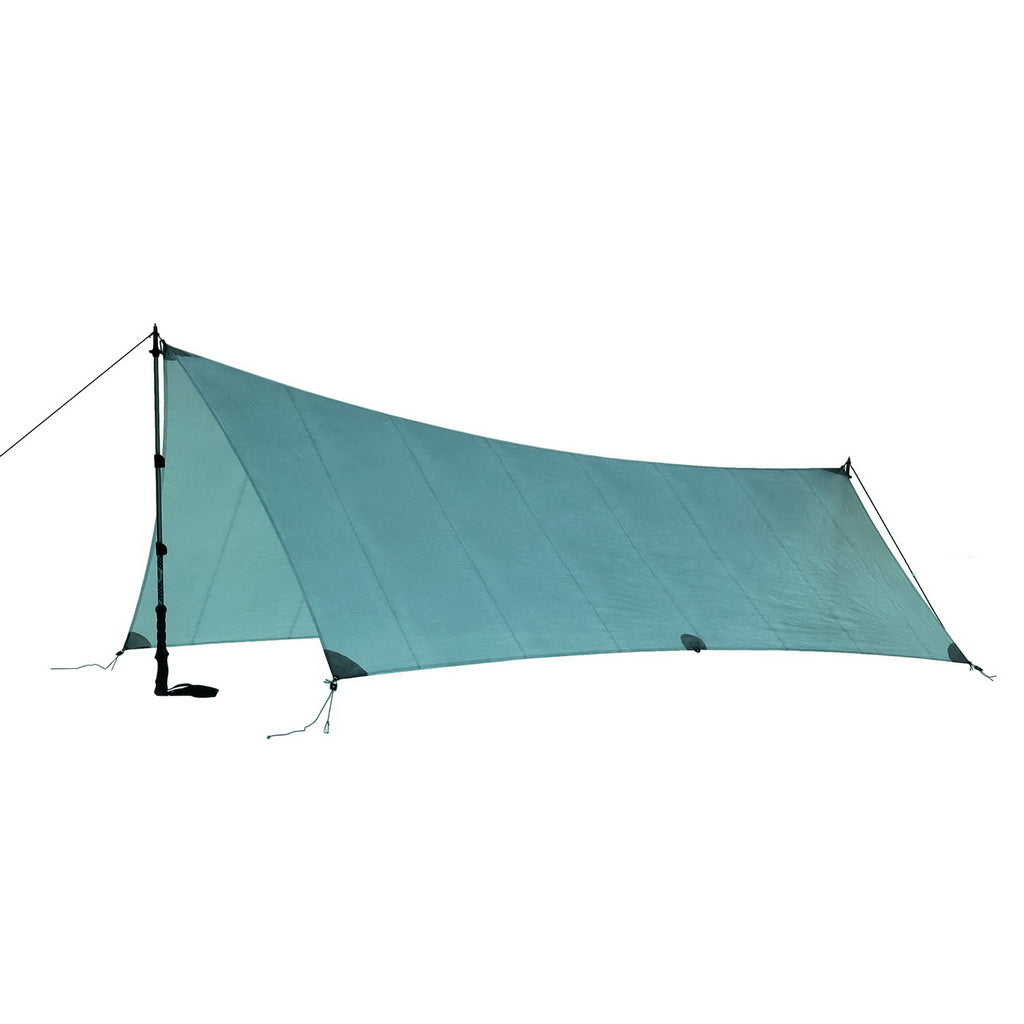

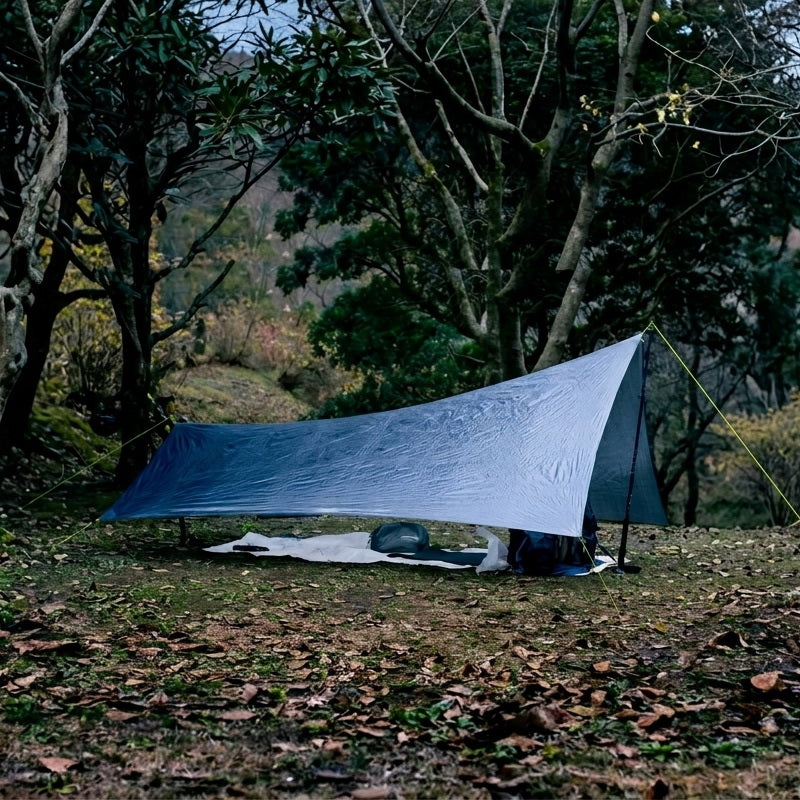

This is the classic tarp set up in the fixed A‑frame structure that tapers in width to fit for sleepers. All sides of the tarp and its ridgeline are precisely cut in curves, proper for an easy and taut pitch with a favorable living space.

The tarp is less than 200g and weights similar to your cell phone. Combining the tarp with an UL bug net, you get a shelter system of full protection around 400g! The tarp can also be accompanied by a bivy to further bring down the weight and for FKT or skilled adventurers.

Features

Main points

• Catenary cut ridgeline and all curved sides for a beautiful shape
• Very fast to set up (2-5 minutes)
• Cord loops at two ends of the ridgeline for hanging a bug net

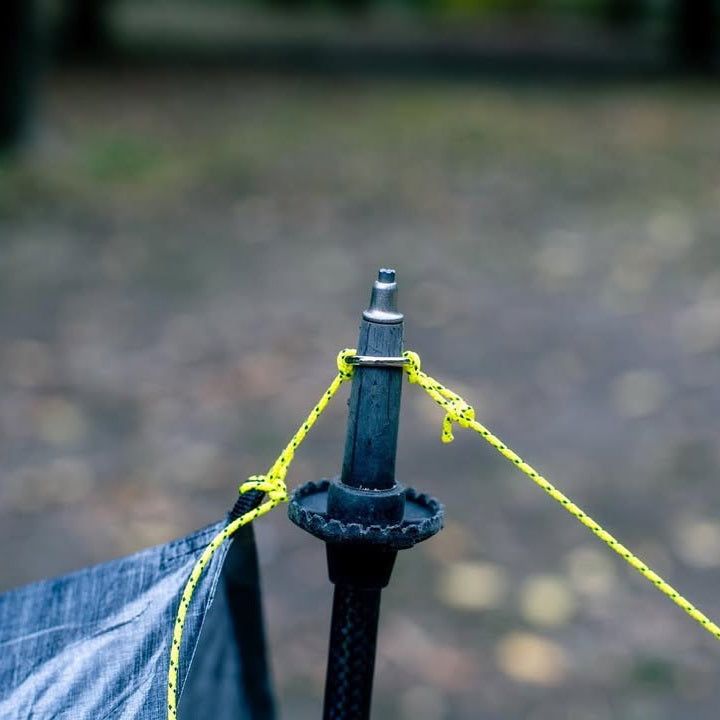

• Metal O-rings to the ridgeline tieouts to hold trekking pole tips
• Fully waterproof
• Virtually no stretch of DCF
  • Great wind shedding
  • Does not sag after rainfall or overnight dew

Tie-outs

• Progressively-sized radial DCF reinforcements bonded on both sides
• Minimally invasive sewing technique
• Detachable linelocs compatible with guylines under 2mm in diameter

Specifications

• 192 grams (w/o stuff sack)
• 270 cm front width x 270 cm ridgeline x 198 cm rear width
  (106" x 106" x 78")

• 8 tieouts with minimal 6 stakes to set up
• For 1-2 sleepers
• 0.8 oz DCF (CT2E.08)
• 1.6mm ultralight UHMWPE guyline
